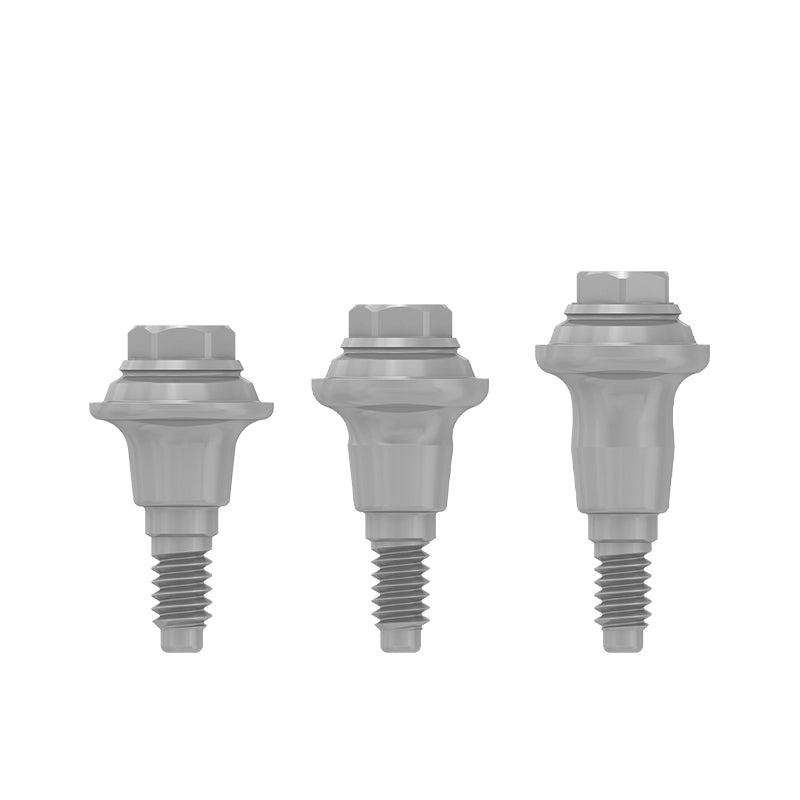

The Multi-Unit abutment is designed for screw-retained, multi-unit restorations, including immediate loading protocols such as All-on-4 and All-on-6. It enables the transition of the prosthetic platform from implant level to gingival level, improving prosthetic accessibility and outcomes.
Technical Specifications
Connection: Conical Connection
Emergence Profile: Concave
Restoration Type: Screw-retained
Implant Type: V3, C1
Platform: Narrow Platform
Diameter: 4.8 mm
Gingival Heights: 1 mm, 2 mm, 3 mm
Material: Titanium (Ti Grade 5)
Tightening Torque: 30 Ncm
Features
Monolithic design
Compatible with MIS systems
Suitable for fixed and removable bar-supported restorations
Includes dedicated screw for straight MIS C1 Multi-Unit (Hex driver)
